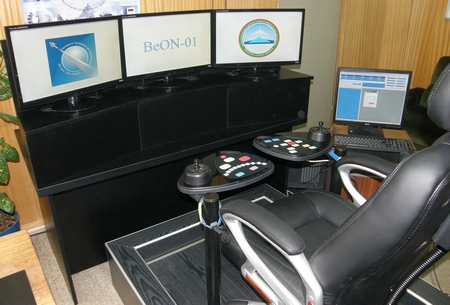

RESEARCH COMPLEX BEON-1
beon1



BeON - 01



Goal:

Study of the ability of operators to deal with complex situations in extreme environment

Evaluation of:

  • Situational alertness (awareness) perception sustainability, volume and selectivity of attention, working memory, assessing the situation.
  • ability for decision
  • Ability to deal with scarce and contradictory information.
  • Ability to changes in the environment
  • .Ability to perform simultaneous operations occurring.
  • Coping with stress - flexibility, emotional stability, willingness to privates and managing stressors.
  • Individual profile of physiological responses in coping with stress.


System for collecting and processing of information (SCPI) ZORA

ZORA is the first generation space medical system. The main goal was an investigation of the neuro -physiological status of the cosmonauts during a flight.
System was based on the "Mir" space station in 1988 (second Bulgarian flight in the space). It worked there four years. With Zora was prepared many different experiments as a "Labirint", "Potential", "Dosug", "Opros", "Globus" and "Statokinetica".

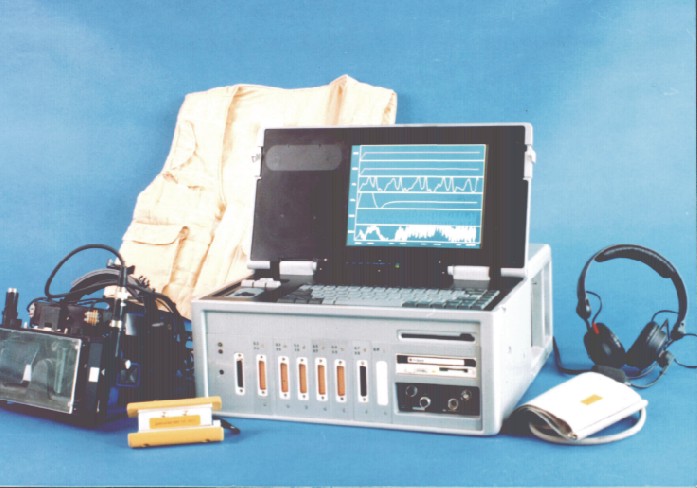

NEUROLAB-B


NEUROLAB-B is the second generation medical equipment for the studies of the cosmonauts, psycho and psycho - physiological status during a long flight. It was based on the board of "Mir" Space Station in September 1996. "Neurolab-B" worked in the space until March 2001.

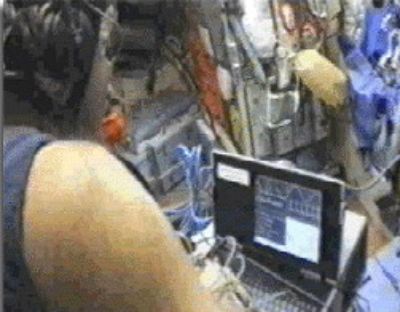

On the board of 'MIR' space station

Space version of NEUROLAB - B supports 48 channels and can be extended up to 128 channels


NEUROLAB B - Technical parameters:
ECG 4 channels
EEG 4 channels
EMG 4 channels
EOG 4 channels
Pulse wave 1 channel
Breath effort 1 channel
Body temperature 2 channels
Skin conductance level 1 channel
Blood pressure 1 channel
Electrostimulation 1 channel
Voice recognition
 1 channel
Dynamometer 1- channel

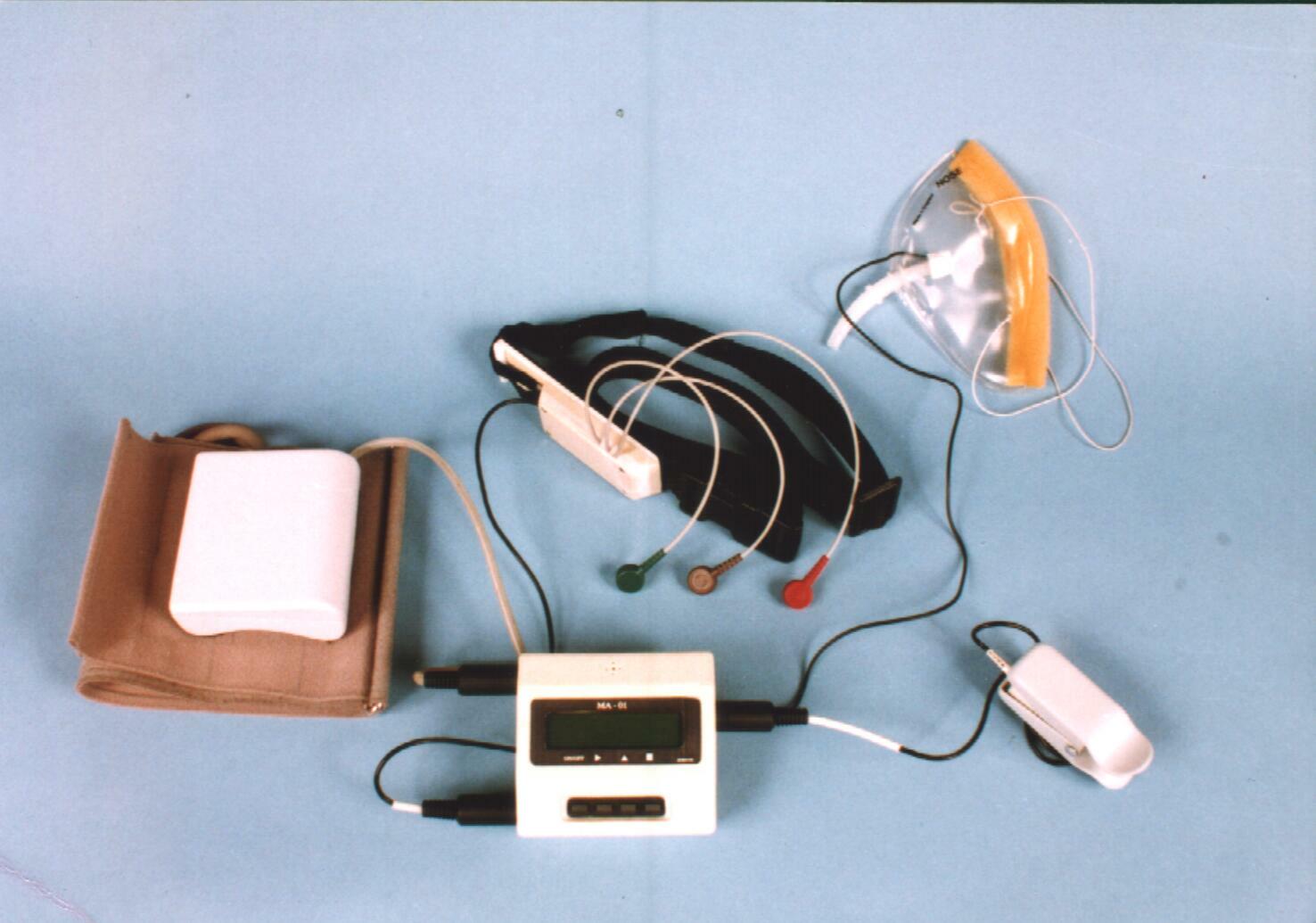

MA-01 Sleep apnea studies

MA-01 is a holter system developed for measurement and analysis of 5 physiological channels necessary for apnea analysis during a period of sleep. Capacity of the memory is enough to save a record with a length up to 10 hrs. The quantity of the recorded data could be controlled in real time by the LCD display build in the recorder. Via RS232 interface all channels could be controlled on the host computer. The interpretation of the recorded information is supported by a program responsible for the data downloading, processing and analysis.


ECG holter systems

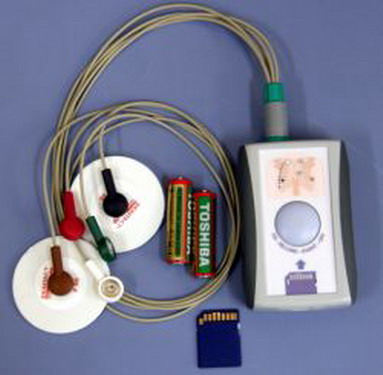

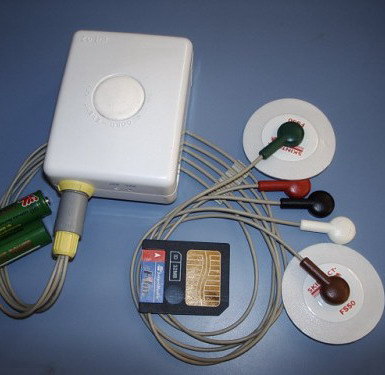

ER-02


  • Full disclosure, 24 hours continuous recording.
  • Two independent ECG channels (total of 5 electrodes).
  • Online ECG signal control.
  • Fast data transfer to PC (24 hours record for 20 sec.).
  • Data storage on nonvolatile smart media card, secure digital or multi media card
  • Power supply: 2 NiMH 1.2V rechargeable or 2 alkaline 1.5V batteries.
  • Optical connection between patient and PC
  • Powerful software for data analysis.
  • Dimensions:
    • ER-02 85x65x32 [mm]
    • ER-02M 90x55x25 [mm]




  • Weight with batteries:
    • ER-02 170 [g]
    • ER-02M 135 [g]
  • Very stable recording quality
  • Full control given to the physician
    • Fast access to patents data
    • Detailed and unlimited report volume
    • Full interactivity
    • 'Program education' function
  • Easy to use and safe device operation
    • Fast data analysis
    • Recorder operated with a single button
    • Patient's safety guaranteed
    • Cheap and widely available power supply units
  • Quick and effective patient processing

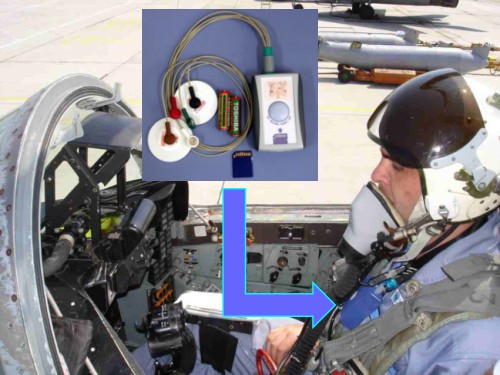

On the board of jet fighter



Pulse oxymeter SP-01

  • Up to 24 hours continuous recording
  • Measured parameters
    • Oxygen saturation [%],
    • Heart rate [bpm],
    • Perfusion index[%]
    Manual back light screen control
  • Data storage on nonvolatile flash memory
  • Selectable period of measurement (2 min – 1 hour)
  • Power supply: 2 NiMH 1.2V rechargeable or 2 alkaline 1.5V batteries

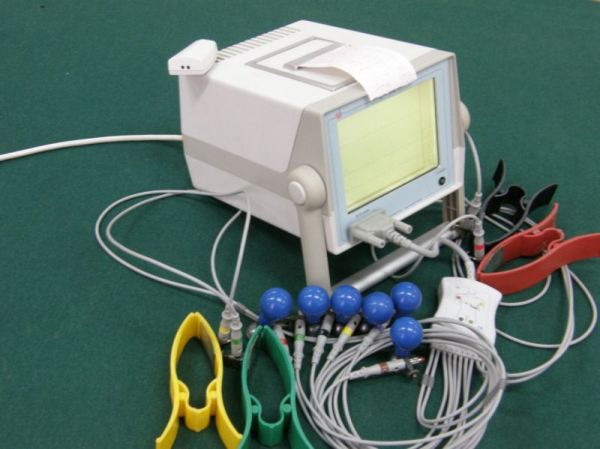

12 channel ECG - C12

  • 12 standard ECG leads
  • Connection with PC via cable or IR Makes up to 5 hours continues record on the
  • PCmakes up to 1.5 min continues record in the build in the device memory
  • Digital filters of 30 Hz and 50 Hz
  • ECG signal control, on-line heart rate detecting, on-line vector diagram.
  • Touch panel control
  • File-saved record and patient data base supporting.
  • Power sources - 220 V AC and 12 V DC accumulators build in the device.
  • One hour continues work on accumulators
  • Optical interface C-12 to PC.
  • Dimensions - 130x160x210 mm.
12 channel ECG - CPC12

  • 12 standard ECG leads
  • Connection with PC via cable RS 232
  • Makes up to 5 hours continues record on the PC Digital filters of 30 Hz and 50 Hz
  • ECG signal control, on-line heart rate detecting, on-line vector diagram.
  • Build-in test generator.
  • File-saved record and patient data base supporting.
  • Cheap power sources - two NiMh accumulators 1.2V or two batteries 1.5V type R6.
  • Optical interface CPC-12 to PC.
  • Pocket size - 85x65x32mm / weight 165g.

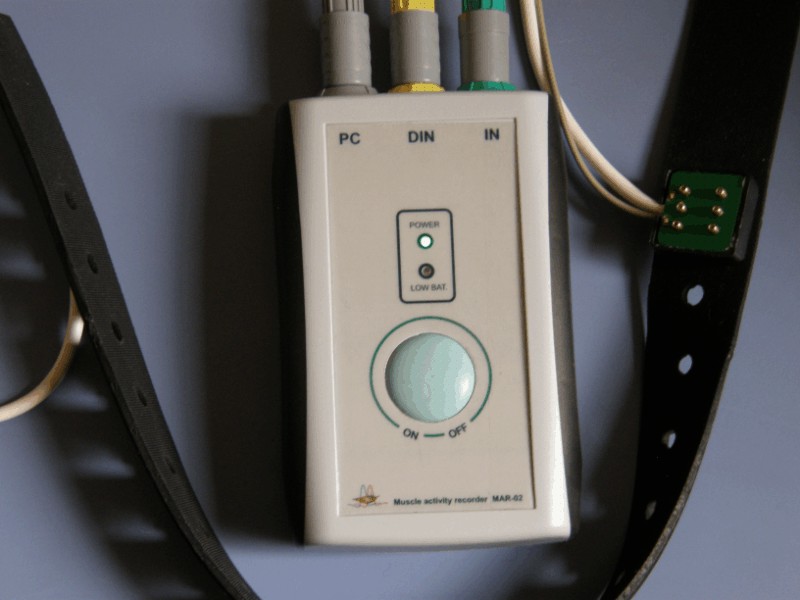

Muscles activity investigation MAR-02


Description Parameter
EMG 2 channels
Dynamometer 1 channel
Interface optic RS232
Transfer rate 115200 bit/s
Sample rate 10 kHz
AD precision 12 bit
Power supply 2x1.2V NiMh
Record length 40 sec.
